Modular Prefabricated Manufacturing, Transport-Friendliness

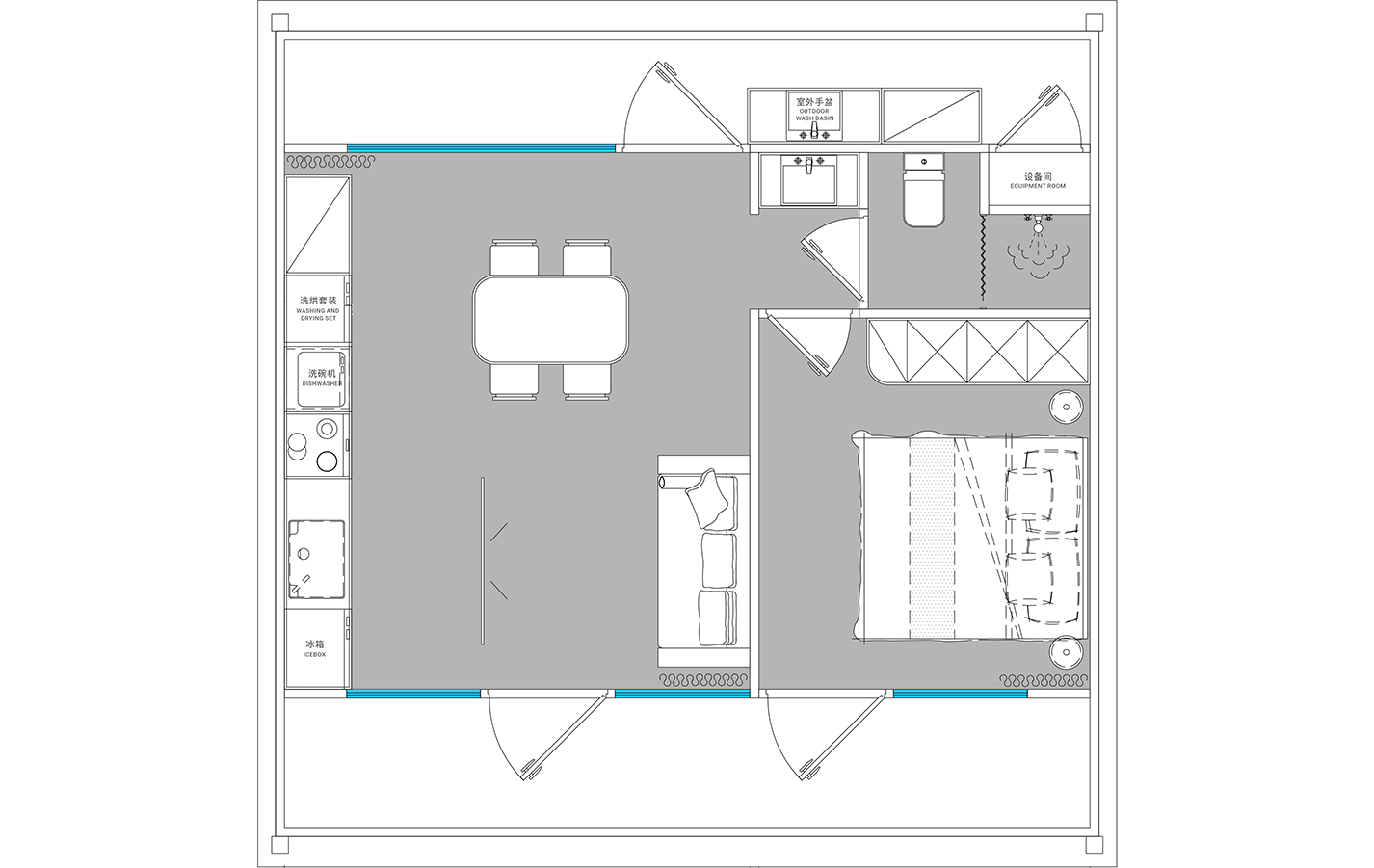

FLOOR PLAN DESIGN

2D Layout Diagram of Interior Space: Plan flexibly based on labeled positions of walls, doors, and windows, or achieve further customization by modifying base configurations.

ETONG-MK58

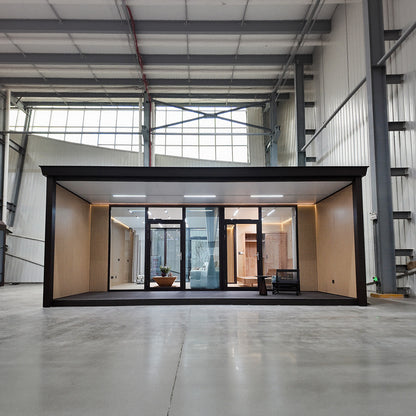

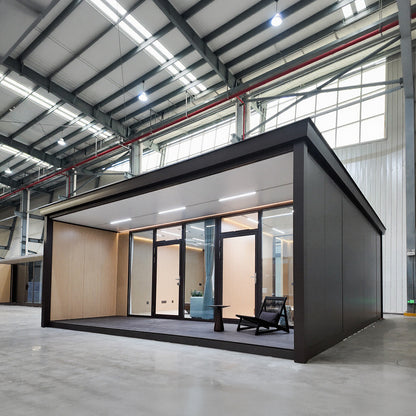

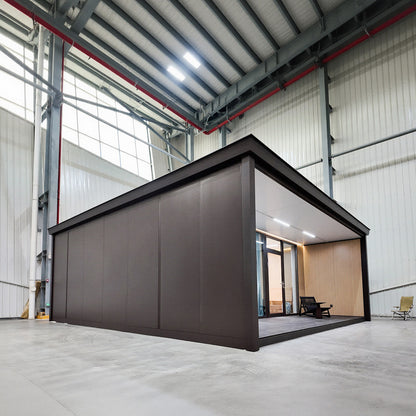

OVERALL RENDERING

Default exterior colors: white and brown. Default rendering shown on the right-side.You may increase glass panels and adjust functional zoning per requirements,or contact us for extended customization services.


PRODUCT CONFIGURATION

The product is undergoing continuous upgrades and iterations,Brand configurations may be replaced with equivalent models as required.

Aluminum frame system
The whole aluminum alloy quick installation structure, the installation bolts use 304 stainless steel material, the installation is quick and easy

Interior and exterior coating
Internal aluminum plate wood grain coating, external aluminum plate fluorocarbon roller coating paint, corrosion prevention, rust and moisture proof

Roof module
The thickness of the insulation layer is 80mm (polyisocyanurate),B1 flame retardant standard, aluminum frame plate

Wall module
The thickness of the insulation layer is 80mm (polyisocyanurate), B1 flame retardant standard, aluminum frame plate, prefabricated cable tube and switch socket installation bottom box

Opening window module
The thickness of the aluminum frame is 80mm and the glass uses TPE technology (5+9A+5LOW-E) double-layer hollow tempered glass

Glass curtain wall module
The thickness of the aluminum frame is 80mm, and the glass uses TPE technology (5+9A+5LOW-E) double-layer hollow tempered glass

Entrance door module
All-aluminum frame 1200 width *2700 height, the inner and outer aluminum plates are filled with aluminum honeycomb, high strength, corrosion resistance, equipped with waterproof intelligent door lock

All aluminum honeycomb panel internal ceiling module
The roof adopts 7mm honeycomb sheet, light weight and high strength, prefabricated module, direct installation, glue-free process, no need to cut and glue twice

Counter, mirror and cabinet
Hd mirror smart makeup mirror, environmental protection panel mirror and cabinet,flexible lighting and fog removal function (Micoe)

Toilet, paper towel holder, exhaust system
Silent Smart Toilet (JOMOO) Paper towel holder (JOMOO) High air volume exhaust System (Panasonic)

Shower head
Grey ultra-thin constant temperature shower (JOMOO) equipped with one key one control, large storage platform, large water volume

Angle valve, connecting hose, floor drain
Includes water connection fittings for whole-house applications, Angle valves for hot and cold water, connection hoses, floor drains (submarine)

Bathroom door (Aluminum frame + matte glass)
Shower room glass door, toilet room glass door

Zero line and fire line intelligent switch
Intelligent double switches, can connect to the Xiaomi smart home system, access the lighting harness, can control the whole house light through the mobile phone app

Magnetic track
Constant current magnetic track, standard floodlights and flat lights

Wireless control curtain motor and curtain track
Choose intelligent electric curtain track motor, equipped with standard color blackout curtain

Cement fiber board base
The base layer adopts 18mm thickness fireproof insulation cement fiber board

Solid wood laminate flooring
The surface of the solid wood composite floor is 10mm thick and equipped with moisture-proof film, wear-resistant and easy to manage

Air conditioner
Gree air conditioners 1.5p*2 sets

Water heater
Smith 80 liter water heater

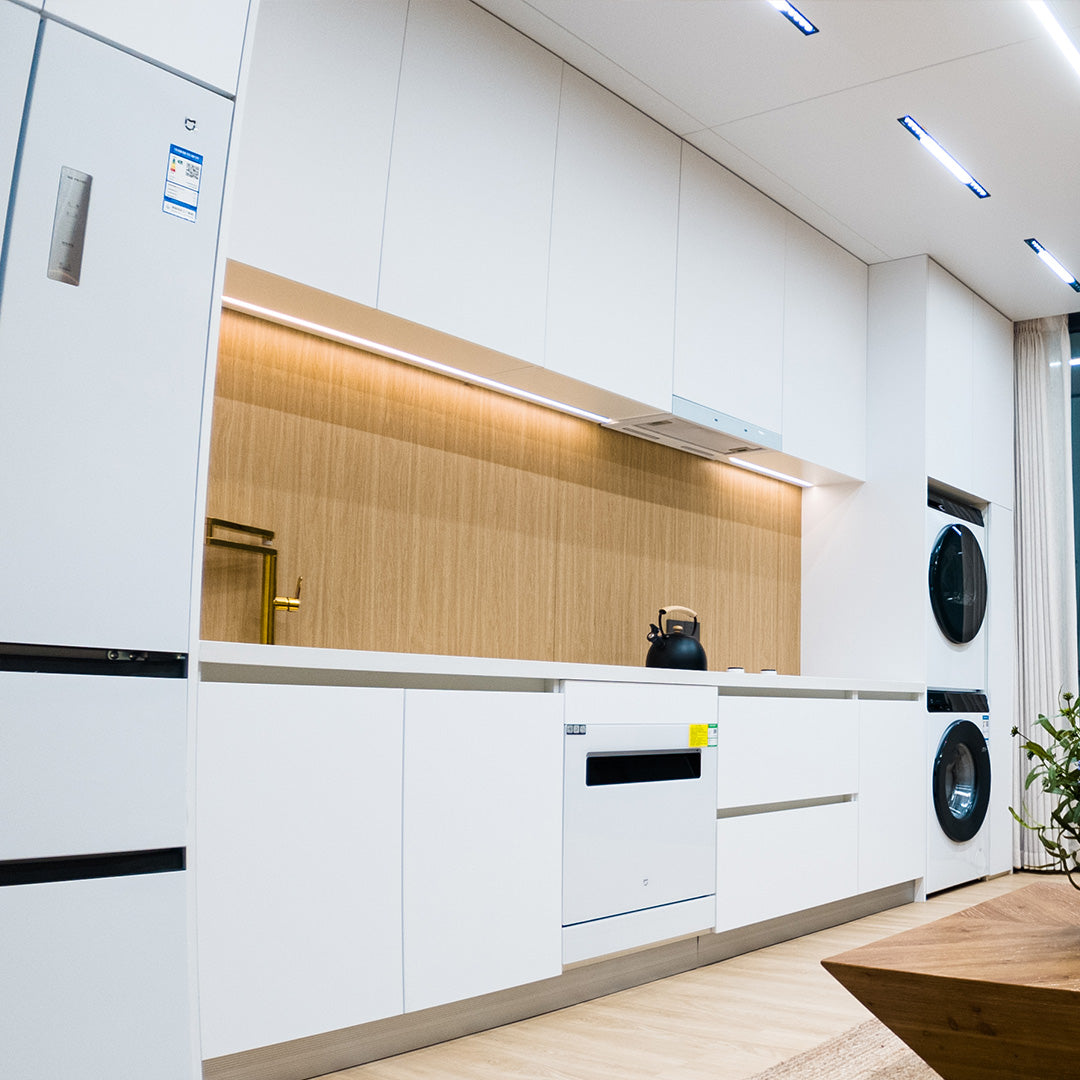

Kitchen and appliances inside
Refrigerator, stove, sink, washing machine, dishwasher

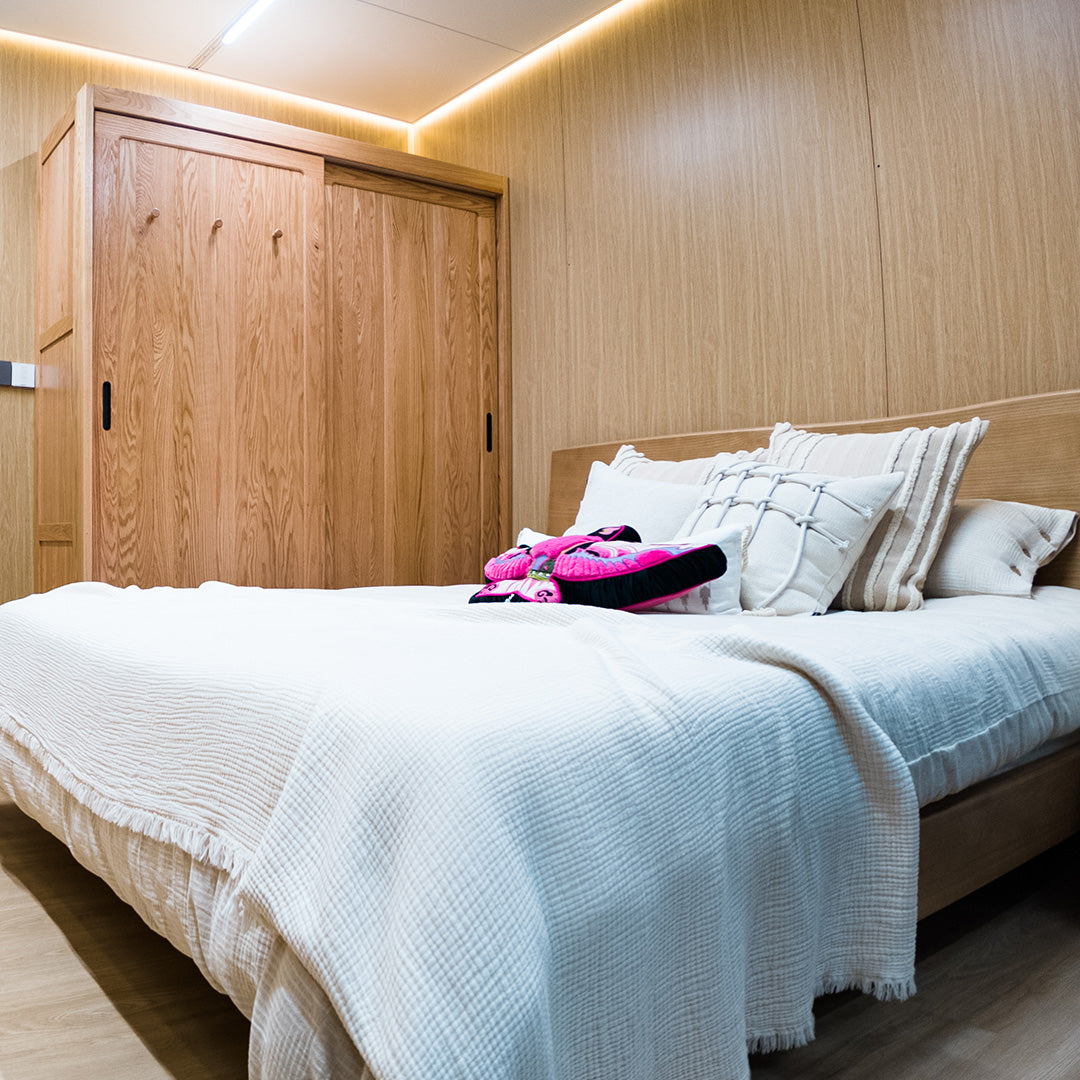

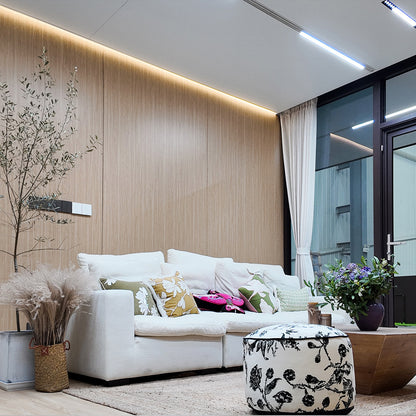

Bed, wardrobe,sofa
Furniture set

ETONG-MK58

DOOR AND WINDOW MODULE

The walls, interior ceiling, and floor of the ETONG Space Capsule homes utilize 80mm-thick aluminum structural modules filled with high-quality PIR/XPS insulation material. The module dimensions can be flexibly determined based on layout plans, while being designed for easy transportation, assembly, and handling, effectively reducing construction and transportation costs.

WALL/CEILING/FLOOR MODULE

The walls, interior ceiling, and floor of the ETONG Space Capsule homes utilize 80mm-thick aluminum structural modules filled with high-quality PIR/XPS insulation material. The module dimensions can be flexibly determined based on layout plans,
while being designed for easy transportation, assembly, and handling,
effectively reducing construction and transportation costs.

FAQs

Production and Delivery Cycle

Production generally takes 7-45 days, and delivery takes about 40-60 days depending on the shipping route.

Service & After-sales Policy Statement

Installation Support: We provide detailed installation drawings and remote video guidance. If needed, we can recommend third-party installation teams (at extra cost).
Warranty: The main structure is covered by a 5-year warranty. Electrical appliances and accessories are covered by a 1-year warranty (excluding man-made damage and force majeure).
Spare Parts Support: We provide spare parts delivery service after sales. Some parts can be shipped directly to the client.
Customer Support: Our bilingual (Chinese-English) support team is available via WeChat, WhatsApp, email, and other platforms.
Customization: Personalized design and material upgrades are available. Clients can also handle interior customization locally.

Purchase and transportation instructions

1. Select the product model and quantity, confirm the product price, delivery location, and sign the contract for payment. Our company will produce after receiving the advance payment.
2. When the production of the goods is completed, you arrange a video call or go to the factory for acceptance. After the acceptance is completed, you pay the balance.
3. After our company receives the final payment, you can arrange for a freight forwarder to pick up the goods or we can handle transportation, booking and shipping for you.
4. After the freight forwarding company completes the booking, our company will pack and secure the products. After confirming the shipping space, the goods will leave the factory and be shipped by sea.
5. Preparation before receiving the goods:
5.1 After you place the order, my engineering department will provide you with basic construction reference drawings. You need to ask your local engineering team in advance to help you prepare the basic load-bearing capacity of the space capsule and the water source for the home. Household power supply and sewage pipes. The above conditions should be met before the goods arrive at the site.
5.2 Confirm transportation plan from port to site
6. The goods arrive at the port: When the goods arrive at the port, you need to ask your freight forwarding company to help you with customs clearance and transport the goods back to your project site;

Installation instructions

1. Install the product according to the instructions provided by ETOGN
2. When the goods arrive at the site, you need to arrange in advance for the crane to unload the truck to your designated location.

3. Arrange 2-3 workers in advance to wait on site to prepare for unloading and installation.

4. Professional hydropower engineers are required on site.

5. ETONG can remotely guide the installation through real-time video.

Warranty

We provide a 1-year warranty. After you place an order, we will provide you with basic drawings of water and electricity. During product production and transportation, we will provide you with installation guidance videos, and will also set up a working group and dedicated personnel to handle your installation process and work.
However, we really cannot provide more services for glass and home appliances;
1. Our glass is made of the same material as automobile glass, so we may need to consider the glass. If you purchase a large amount, we will consider sending you spare parts. Of course, if the glass really needs to be replaced, we can send you drawings and material requirements. If you can find a replacement locally, then you can replace it locally;
2. The other is the home appliance products and configurations. When we use them in China, they will provide us with 6-8 years of after-sales service. However, there is a high probability that we will not be able to do this when exporting products, so some of our overseas customers will directly replace home appliances with local services, such as air conditioners, water heaters, etc
